A200
the Wise
Solar
North America
|
The features and benefits of Power-Tech™ Absorbent Glass Mat Technology using Sealed-valve-regulated construction are many. High discharge rates from Low internal resistance , they also have great vibration and shock characteristics from their tight construction Highly porous microfiber glass separators completely wrap around the positive plate to absorb and immobilise the electrolyte; These allow the Oxygen formed at the positive plate to react with Hydrogen from the negative plate to recombine as water for the electrolyte. They have enough electrolyte for their entire usable life and should not be opened. By design, AGM's low gassing characteristics mean there are no special ventilation requirements for Power-Tech AGM's in normal use. Like Deka Gels, simple ambient air flow through limber holes or air-slots are sufficient. Position independent, Power-Tech AGM's may be installed and secured pretty much anywhere except upside down. Consistent Quality Certifed to ISO 9001 and a UL recognised component,(MH17218) they are rated non-spillable by ICAO(International Airline Transport Assoc;) IATA (International Airline transport Assoc;) and DOT (department Of Transportation) definitions and they may be Transported safely anywhere in the world. Charging: Use a good constant potential, voltage-regulated charger. For 12 volt batteries charge to at least 14.4v- but no more than 14.6v @ 68°F. Remember; Under or overcharging will shorten any batteries life. For ease of use, the majority of the top quality inverters/chargers already have an AGM charge setting programmed in so the transition to AGM's from conventional flooded batteries or is very straight-forward. Interacter chargers are excellent for this. MG notes that the very high internal gas recombination of - Absorbent Glass Mat Separator Starved Electrolyte type Batteries (known as the AGM type) - approaches 99%. This gas recombination produces internal heat (exothermic). Simply put there is very little electrolyte to help cool the unit through its case. Generally we are big fans of this technology in cool to very cold, even sub-zero applications, but would advise caution in its use in warm and up to hot environments. Please follow the Voltage/Temperature guidelines below for maximum use and life.
|
Group #
|
Volts/CCA@0°F
|
Capacity 20Hr Length
|
Width.In/mm
|
Height. In/mm
|
Weight.lbs/K
|
8AU1F
|
12 /240
|
32.5
|
8.3 / 210
|
5.12 / 211
|
7.25 / 184
|
24 /10.9k
|
8A24M
|
12 /470
|
53.0
|
9.4 / 238
|
6.75 / 140
|
9.9 / 251
|
53 / 24.0k
|
8A27M
|
12 /580
|
92.0
|
12.75 / 324
|
6.75 / 140
|
9.9 / 251
|
63 / 28.6k
|
8A31DT
|
12 / 650
|
105
|
12.92 / 329
|
6.75 / 140
|
9.4 / 238
|
69 / 31.3k
|
8A4D
|
12 / 1110
|
198
|
20.75 / 527
|
8.50 / 216
|
10 / 254
|
129 / 58.5k
|
8A8D
|
12 / 1350
|
245
|
20.75 / 527
|
11 / 279
|
10 / 254
|
157 / 71.5k
|
|
Terminals are tapered post. DT denotes dual terminal post/threaded studs. M marine combined Post/Threaded studs.
AGM's are a good strong alternative and less expensive than the higher cycling Gelled types.
We highly recommended these units for cool and cold climate use!

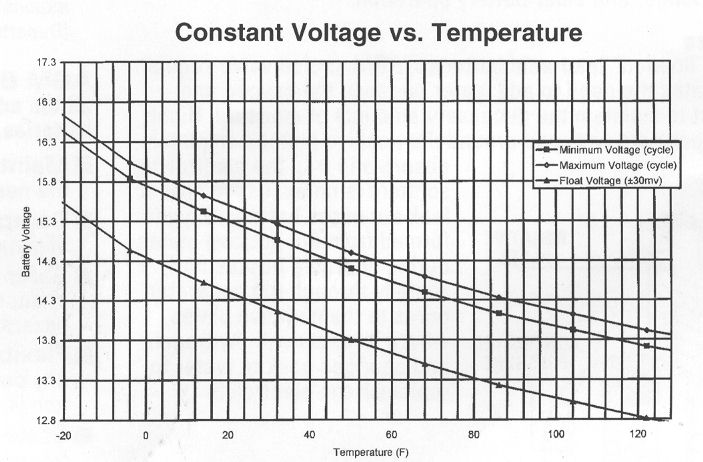

The following data are for Deka Power-Tech AGM Battery Technology only.
The above data are for AGM Battery Technologies only
